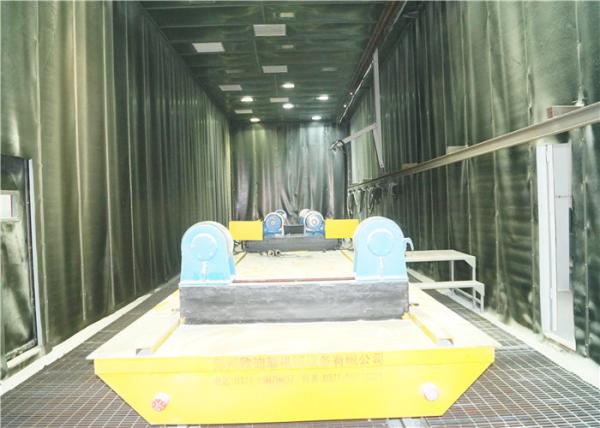

Dustless Pneumatic Recovery Sand Blast Room L 6 * W 4 * H 4m Clean
Weld Joint
Working Principle
TS series suction type sand blast room is a new high-tech product
developed by our company in recent years. Its main principle is to
use honeycomb floor technology.
The sand material is recovered by the vacuum force generated by the
negative pressure of fan, and then sucked through the pipe to
separate the sand and dust, and the useful sand material can fall
into the sand blasting tank automatically.
The dust and other useless debris will enter the dust removal
system to filter. In order to ensure that the sandblast workers can
have good visibility. The system is equipped with a highly
efficient cartridge filter, the dust generated in the sand blasting
operation will be quickly inhaled and taken out of the pipe, and
through the high efficiency dust collector to filter.
Quick Detail
| No. | Item | Description |
| 1 | Material of product | Cast iron, cast steel, cast stainless steel; oil must be carried
out before the sand blast |
| 2 | Surface cleaning requirements | Sa2.5; cleaning all internal and external surfaces |
| 3 | Working efficiency | ≥15m2/hr/single gun(φ10mm blast nozzle) |
| 4 | Abrasive available | Aluminum oxide, glass bead, steel shot, steel grit; not bigger than
mesh 40 |
| 5 | Dust Emission | ≤80mg/m3 |
| 6 | Noise | <85dm |
| 7 | illuminance | ≥400Lux |
| 8 | Total Power | 32.7 kw (not include air compressor) |
Parts Introduction
1. Room Body: Light steel structure
2. Blasting Tank: Pressure Type
3. Filter 11kw
4. Abrasive Separator 18.5kw
5. Body Lining: Wear-resistant Rubber
Air Source: Screw Air Compressor, Freeze Drier, Air tank
Why TS sandblast room?
TS sandblast rooms are built to ensure most optimal production
levels with low maintenance. Our sandblast rooms are specifically
engineered to meet your blasting needs.
Main Advantages:
● No weather constraints. Blast anytime, any day.
● High production levels.
● Reduced media costs from recycled media recovery systems.
● Controlled work environments and exceptional lighting for
consistent quality of work.
● Very clean work environments, contained dust
More information, please feel free to contact with us.
