Auto Roller Conveyor Shot Blast Machine Clean Sheets/Profiles/Angles/Channels/Steel Constructions

Application possibilities

This equipment is a roller type shot blasting machine. It is mainly used for steel plate, structure and H beam surface cleaning and strengthening, descaling and eliminate internal stress and increase the paint adhesion, etc. After treatment, the fatigue strength increased, the steel surface and inner quality improved. Process Procedure: Loading - workpiece moving in - blasting - workpiece moving out - discharge.

Maximum Size of Product can be Treated

Quick Detail

Note: our equipment can be designed according to customer special requirements

Advantages of TS Machine

High Efficiency

• Using 8pcs Q034 wheel with high blasting speed, cleaning speed at 0.8-1.2m/min.

Automation

• PLC programmable control

Long Service Life

• Using high chromium casting wheel parts to extend the service life;
• Using thickness 10mm SP Mn13 as the protective of cabinet;
• Using large head cap bolt which made by the casting iron prevent shots damage the cabinet shell.

Low Dust Emission

• Rubber sealing of 4 sets each on the entrance and exit door to prevent shots escaping
• Each parts connecting joint with rubber sealing

More safe

• Equip with safety protection such as ladder, guardrail and etc.
• Each motor has thermal protector, has sprocket cover;
• Emergency button on control panel, interlock mechanism, failure alarm;

Less failure

• Equip with sealing device and screen mesh at each transmission bearing;
• Electrical components are from qualified supplier who has cooperated with us many years;

Machine Description

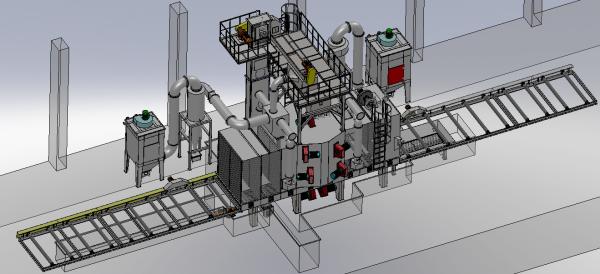

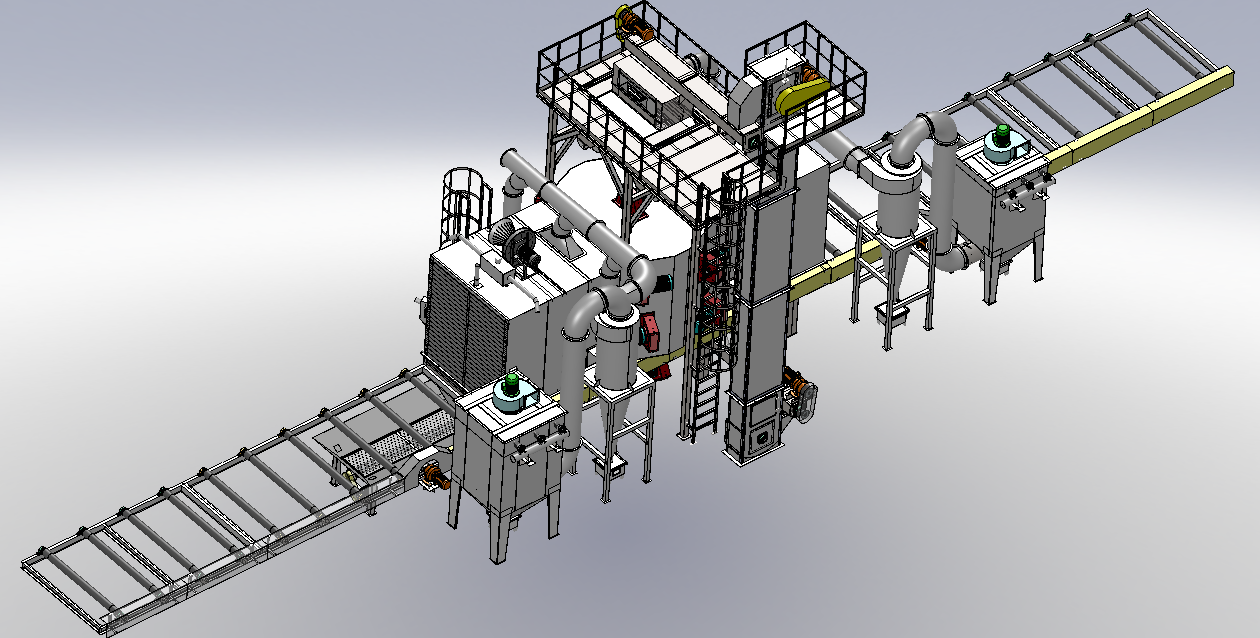

The equipment mainly consist of entry/exit vestibule, blasting chamber, blasting system, abrasive recovery system, roller conveyor system, dust collector and electrical control system.

If you can't find suitable model, please feel free to contact with our sales team.
