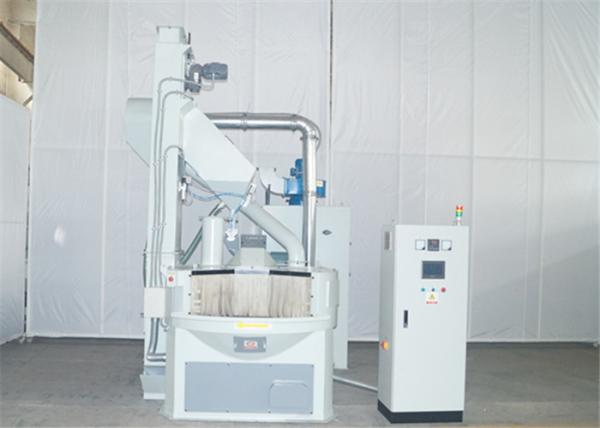

Airless Auto Blasting Machine use Round Steel Shot Environmental
Protection
Description
It is our patent product designed for treating mobile phone shell,
notebook panels and other electronic products.
Airless Blasting System
It is the use of motor drives the impeller rotation, abrasives is
thrown to the surface of the work piece by centrifugal force,
achieve the effect of blasting. The device has the advantages of
high processing efficiency, simple operation, energy saving,
environmental protection and no pollution; After sandblasted, the
surface is clean and without adhesion of debris; especially the
blasting result is consistent and uniform compare to manual
blasting.
Mechanical abrasive recycle system
Effectively separate the clean abrasive from dust to ensure the
good cleaning result, moreover, saving the abrasive. Independent
filter system can collect the dust inside the cabinet effectively
to prevent dust pollution.
Continuous rotary table system
The equipment transmission mode using continuous rotary disc,
workpiece is placed on the small wheel (tooling), big wheel
jump-start the small wheel into sandblasting room, then small wheel
rotation (workpiece rotation), spraying while turning. One worker
can loading and unloading the artifact. The rotary drive is
equipped with frequency conversion control, and the customer can
adjust the speed according to the demand of the product.
Technical Specification
| Item | Specification |
| External Size L*W*H | 4000*1600*3400mm |
| Maximum workpiece | 400*100mm(Diameter*Height) |
| Airless Blast System | 5.5kw(inverter control) |
| Elevator | 0.75kw |
| Large Table | Diameter 1350mm; power 0.75kw(variable speed) |
| Small Table | Diameter 400mm; power 0.4kw(variable speed) |
| Dust Filter | 1.5kw |
| Compressed Air Consumption | 0.2m3/min; pressure 0.3-0.6Mpa |
| Total Power | About 8.9kw |
Advantages:
DON'T NEED AIR COMPRESSOR, traditional air blasting machine with
12pcs gun works need matching with 90kw air compressor, each hour
it will take about 72kwh. But using our special designed airless
blasting machine it only need 9kwh. Can get the same surface
roughness as well as traditional air blasting machine.
Recommend Abrasive:
| Round Steel Shot 120#~150# | C≈0.2; Mn≈1; Cr≈4; Ni≈0.7; Mo≈0.3 | Tensile Strength ≈120Kgf/mm2 | Hardness≈750HV(≈62HRC) | Density≈4.1kg/cm3 |
Application:
Treating all kinds of accurate electronic products, such as mobile
phone shell, computer shell, sandwich ovenware, iron, communication
equipment etc.
Suitable for all kinds of products which need to be painted high
temperature coatings and plating after sandblasting, such as
non-stick pan,gas stove charge core.
