Features
Use vacuum blasting machine can avoid the environmental pollution
of dust and the danger of workers’ healthy. The difference between
vacuum blasting machine and traditional portable blasting pot is
recycle system. When the machine is blasting, and it is recycling
at the same time. We use special brush head, they are fit all
(flat, cornered, radius) surfaces. The special brush head can
recycle the blasted abrasive and dust, they are recycled into the
separator. The abrasive is fell into the pressure tank and the dust
is absorbed into the dust collector. The dust collector is
automatic filter cleaning system,easy disposal of collected dust in
a plastic bag.
This machine couldn’t occupy ventilation and special site(except
the special condition). The total unit(including fan and dust
collector) can be movable easily. It can save operating area and
cost.
Equipped with adjust air valve, which can adjust intake air.
Equipped with special abrasive control valve, it can adjust the air
flow and sand flow evenly. So we can get the suitable rate of air
and abrasive, improve the working efficiency and quality.
Equipped with automatic filter cleaning system, easy operation and
saver time and strength.
Reliable main machine parts, long lifetime and easy maintenance.
Specification
| Model | TS-150L |
| Size | 1800×980×1840(L*W*H) |
| Weight | About 400kg |
| Voltage | 380V ±10% 50HZ three phase |
| The dia of nozzle | 6mm |
| Working pressure | 4-7bar |
| Working radius | 20m |
| Working efficiency | 1-3m²/h |
| Working type | Automatic recycle type |
| Air consumption | 2-3m³/min(22kw air compressor) |
| Fan power | 1x4kw |
| Cleaning level | Sa2.5-3 |
| Roughness | 20-70μm |
| Usable abrasive | Bearing steel grit G50 |

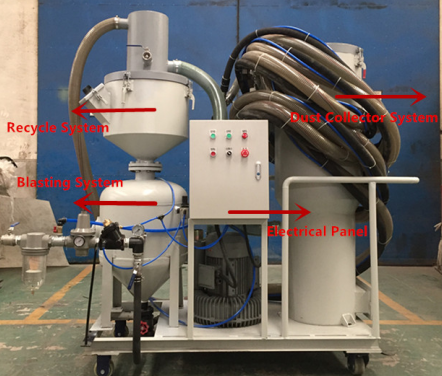

Part Introduction
Maintenance
A. Check the recycle system, electrical system and spare parts, if
they are broken, repair or change them.
B. Check every pressure gauge regularly.
C. Check if the hose, tube and cable protective layer is broken,
change them if anything is broken.
D. Check the usage of fan, add lubricant in the fan regularly.
E, If the machine is under the status of rest, please put the
machine in the area of dry and ventilated places, avoid direct
sunlight.
Failure and Troubleshooting
| Failure | Probable Cause | Troubleshooting |
| Small compressed air | Small air pressure in the regulator valve. | Rotate regulator valve, adjust the air pressure. |
| Continuous air flow with no sand or discontinuous sand | - Too little abrasive.
- The abrasive is wet or piece in the tank.
- The abrasive valve isn’t opened or jammed.
- The size of abrasive is too big to block the nozzle.
| - Feed abrasive.
- Change the abrasive.
- Open abrasive valve to make the abrasive blast repeatedly. Or take
down the abrasive valve to check.
- Please use thin iron rod remove the abrasive.
|
| Abrasive blasted is uneven | - Too little abrasive.
- Low compressed air pressure.
- Nozzle is blocked.
- Wet abrasive.
- Abrasive valve and air valve aren’t adjusted correctly.
| - Add abrasive.
- Adjust high air compressor pressure.
- Remove the plug.
- Remove the wet abrasive, add the dry abrasive, check if there is
water in gas pipeline.
- Adjust two valves.
|
| Low recycle system efficiency | - Checking if it leaks out in the connection of sealing and recycle
tube.
- Too much dust in the filter.
- The brush head and protective tube are broken.
| - Eliminate the connection air leak.
- Clean the filter by the pulse switch. If the filter is very dirty,
please take down the filter from machine to clean and keep dry
status. If the filter is broken, please change it.
- Change the new brush head and protective tube.
|
| Too much blasted sand | - Please check if the abrasive valve opening is too large.
- Please check if the spool in the abrasive valve is in a serious
wear.
| - Please adjust the abrasive valve opening again.
- Please change the spool or abrasive valve.
|
| Low working efficiency | - Please check if the working pressure is ok.
- Please check if nozzle wear.
- Bad performance of separator, most dust flow into the pressure
tank.
| - Adjust the pressure between 0.4 to 0.8Mpa.
- Please change the new nozzle.
- Please check if the inside of separator wear.
|
